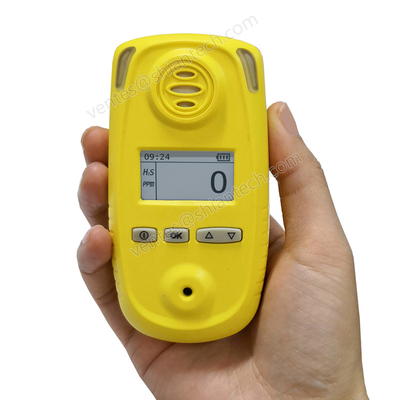

SA-M201, 0-100PPM LCD Hydrogen Sulfide H2S Single Gas Detector
Product Features
SA-M201, 0-100PPM LCD Hydrogen Sulfide H2S Single Gas Detector
1. Handheld, industry use, high sensitivity and accuracy
2. Intrinsically safe, Ex sign is ExibdⅠ
3. Rugged ABS+PC case, heavy duty, crash resistant
4. High-capacity chip, 4 layers PCB board
5. Visual & audible alarm
6. High & low alarm point, fully adjustable
7. SETL & TWA alarm
Application
SA-M201, 0-100PPM LCD Hydrogen Sulfide H2S Single Gas Detector
SA provides portable H2S detector with a continous concentration monitoring LCD display of the ppm levels of H2S in real time. Our single gas H2S monitor is designed to alert workers when the level of Hydrogen Sulfide reaches the high or low alarm set point.
Measure Hydrogen Sulfide anywhere using portable H2S gas detector.Perfect for oil, gas, agriculture,iron smelters, landfills, food processing plants, breweries and sewer waste applications.
Technical Parameter
SA-M201, 0-100PPM LCD Hydrogen Sulfide H2S Single Gas Detector
Gas detected | Hydrogen Sulphide (H2S) |
Measuring range | (0~100)ppm,(0~1000)ppm,(0~2000)ppm |
Resolution ratio | 1ppm |
Sensor | CITY/Alpha Electrochemical Sensor MADE IN UK |
Sensor lifetime | ≥2 years |
Response time | ≤45s(T90) |
Alarms | Audible--buzzer with ≥75dB audible Visible--flashing red LED, ≥20m visible |
Alarm point | Fully adjustable |
Continuous working time | >3 months ( without backlight) |
Charging time | 4-5 hours |
Dust and water resistance | IP54 |
Size & Weight | 105*54*32mm/450g |
Ex sign | ExibdⅠ |
Related similar model recommendation
High quality portable single H2S gas detector/monitor with IP67
Optional Accessories
- Gas sampling pump with filter. (sampling hose and probe.)
- Data logger software, works for Windows 10, Windows XP, Windows 7. Available to output Excel file.
- Carrying suitcase. Hard-sided carrying case with foam case insert.
Why choose us
Design & Moulding --with 14 years’ experience, we make solidest and most practical products
Stricter quality inspection--we persue higher accuracy
Customization--we customize the exact product in your heart
Only focus on gas detector--we think more and deep and offer the best
Company profile
Beijing Shi’an Tech Instrument Co., Ltd is grown out of Beiijing Dashiweye Technology Co., Ltd, and it’s engaged in designing and manufacturing portable gas detectors.
SA-M201, 0-100PPM LCD Hydrogen Sulfide H2S Single Gas Detector
