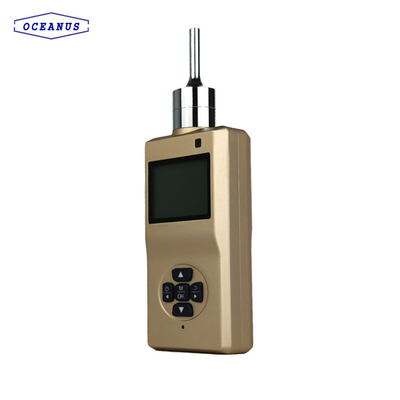

OC-905 Portable Carbon Monoxide CO gas detector
Description LCD display portable Oxygen O2 gas leak detector analyzer
OC-905 Portable CO gas detector designed with the inner pump and the famous brand sensors, with stable performance and high accuracy. Used to detect the single gas concentration for the Combustible gas, Toxic gas, Carbon Dioxide, Oxygen, TVOC, etc. It can directly display the gas concentration data on the screen, the data also could be exported to the computer by USB cable.
For the portable Carbon Monoxide gas detector, the common applications is gas safety inspection and alarm for industrial scene, such as petroleum refinery, chemical plants, LPG stations, boiler rooms, gas stations, paint spray booths, metallurgy, mining, fire, environmental protection, etc., where need to inspect the Carbon Monoxide CO gas concentration.
|
Gas type |
Carbon Monoxide (CO) |
|
Measuring range |
0~100ppm,200ppm,500ppm,1000ppm,2000ppm,5000ppm,10000ppm,50000ppm ,50 mg/m3,100 mg/m3,500 mg/m3,1000 mg/m3,1500 mg/m3,2000 mg/m3,or Customized. |
|
Working principle |
Electrochemical sensor (Optional Infrared sensor) |
|
Resolution |
0.1ppm,1ppm, 0.01 mg/m3,0.1 mg/m3,1 mg/m3 |
|
Precision |
±≤3%FS or Customized |
|
Repeatability |
≤±1% |
|
Zero drift |
≤±1%(F.S/year) |
|
Sampling mode |
Pump-suction sampling (Flow rate of 300ml/minute) |
|
Data storage |
Can record 300000 group of measuring data |
|
Response time |
T90≤20s |
|
Recovery time |
≤20s |
|
Pre-heating time |
≤60s |
|
Display |
LCD dot matrix display of the Gas type, gas concentration unit, gas concentration data, time, battery status, data storage status; |
|
Concentration unit |
ppm,mg/m3 |
|
Working environment |
Working temperature: -20℃~60℃ Working humidity: 10%-95%RH(non-condensing) Working pressure: 86Kpa ~ 106Kpa |
|
Explosion-Proof grade |
Ex ib IIC T4 Gb |
|
Protection grade |
IP66 |
|
Alarm mode |
Audible, visual |
|
Shell material |
Metal |
|
Power supply |
3.7VDC, 2800mAh,Rechargeable lithium battery DC5V USB charger |
|
Charge time |
≤6 hours |
|
Working time |
≥24 hours |
|
Dimensions |
135*65*35mm |
|
Weight |
0.5KG |
|
Accessory |
Box, instruction, USB charger , data line |
|
Quality standard |
GB15322.1-2003,GB3836.1-2010,GB3836.2-2010,GB3836.4-2010 |
| Gas type | Measuring range | Sensor type |
| Ex | 0~100%LEL | Catalytic combustion sensor |
| O2 | 0~25%vol/30%vol | Eelectrochemical sensor |
| H2S | 0~100ppm/1000ppm | |
| H2 | 0~1000ppm/40000ppm | |
| N2 | 0~100%vol | |
| NH3 | 0~100ppm/500ppm | |
| C2H4O | 0~100ppm/500ppm | |
| SO2 | 0~20ppm/2000ppm | |
| Cl2 | 0~10ppm/20ppm/50ppm/200ppm | |
| HCl | 0~50ppm/100ppm | |
| HBr | 0~50ppm/100ppm | |
| ClO2 | 0~50ppm | |
| NO | 0~200ppm/500ppm/2000ppm | |
| NO2 | 0~20ppm/100ppm/500ppm/2000ppm | |
| HCN | 0~30ppm/50ppm/100ppm | |
| HF | 0~10ppm | |
| CH2O | 0~10ppm | |
| THT | 0~50mg/m3 | |
| Helim | 0~1000ppm | |
| Argon | 0~100%vol | |
| SiH4 | 0~50ppm/100ppm | |
| CH4S | 0~20ppm | |
| CO2 | 0~5000ppm/10000ppm | Infrared sensor |
| SF6 | 0~1000ppm | |
| CH4 | 0~200ppm/10%vol | |
| TVOC | 0~20ppm/100ppm/1000ppm | PID sensor |
| CS2 | 0~10ppm/50ppm/100ppm | |
| CH3Br | 0~20ppm/100ppm/200ppm | |
| CH4 | 0~10%vol/50%vol/100%vol | Laser sensor |
