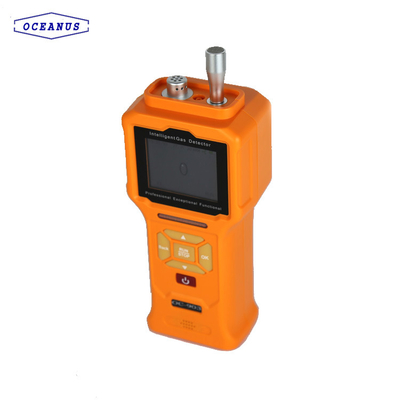

OC-903 Portable TVOC gas detector
Description LCD display portable Oxygen O2 gas leak detector analyzer
OC-903 portable TVOC gas detector used in the different many applications, such as Animal farms, Working room, poultry, Landfill, water treatment, Crematorium, Food storage, environment protection, toilet and other environment where need to inspect TVOC gas concentration.
Features
Semiconductor technology of ultra low power 32 bit microprocessor, 24 bit ADC acquisition chip, so with the high accuracy.
2.4 inch IPS industrial grade color screen.
Support English language menu.
The gas concentration unit support for the ppm and mg/m3.
For 1~4 gas detection, supporting single gas, two gas, three gas and four gas inspection.
With the inner pump and the suction strength is adjustable in different level.
Explosion proof grade of Ex ia IIC T4 Ga.
OC-903 portable odor gas detector designed by our company, it can inspect kinds of incense or odor gas.
|
Gas type |
VOC(Volatile Organic Compounds) |
|
Working principle |
PID sensor (Electrochemical sensor) |
|
Measuring range |
0~5ppm, 0~10ppm, 0~100ppm, 0~50ppm, 0~1000ppm, 0~5000ppm or Customized |
|
Resolution |
0.01ppm, 1ppm |
|
Precision |
≤±2%F.S |
|
Sampling method |
Pump-suction sampling, flow rate of 100~1000mL/min.(Adjustable) |
|
Data logger function |
About 100,000 group of data capacity. |
|
Response time |
≤20s/10s |
|
Recovery time |
≤20s |
|
Repeatability |
≤±1% |
|
Linearity |
≤±1% |
|
Zero drift |
≤±1%(F.S/year) |
|
Display |
Gas type, concentration unit, value, Time, Temperature, Humidity, pump and battery status |
|
Concentration unit |
Mg/m3, ppm |
|
Working environment |
Working temperature: -30~60 degree; Working humidity: 0~95%RH (non-condensing); Working pressure: -30Kpa~100Kpa. |
|
Explosion-proof Grade |
Ex ia IIC T4 Ga |
|
Protection grade |
IP65 |
|
Alarm mode |
Audible-visual-vibration alarm |
|
Dimension |
180m'm |
|
Weight |
500g |
|
Accessory |
Box, Instruction, USB charger, Data line, Calibration cap, CD |
| Gas type | Measuring range | Sensor type |
| Ex | 0~100%LEL | Catalytic combustion sensor |
| O2 | 0~25%vol/30%vol | Eelectrochemical sensor |
| H2S | 0~100ppm/1000ppm | |
| H2 | 0~1000ppm/40000ppm | |
| N2 | 0~100%vol | |
| NH3 | 0~100ppm/500ppm | |
| C2H4O | 0~100ppm/500ppm | |
| SO2 | 0~20ppm/2000ppm | |
| Cl2 | 0~10ppm/20ppm/50ppm/200ppm | |
| HCl | 0~50ppm/100ppm | |
| HBr | 0~50ppm/100ppm | |
| ClO2 | 0~50ppm | |
| NO | 0~200ppm/500ppm/2000ppm | |
| NO2 | 0~20ppm/100ppm/500ppm/2000ppm | |
| HCN | 0~30ppm/50ppm/100ppm | |
| HF | 0~10ppm | |
| CH2O | 0~10ppm | |
| THT | 0~50mg/m3 | |
| Helim | 0~1000ppm | |
| Argon | 0~100%vol | |
| SiH4 | 0~50ppm/100ppm | |
| CH4S | 0~20ppm | |
| CO2 | 0~5000ppm/10000ppm | Infrared sensor |
| SF6 | 0~1000ppm | |
| CH4 | 0~200ppm/10%vol | |
| TVOC | 0~20ppm/100ppm/1000ppm | PID sensor |
| CS2 | 0~10ppm/50ppm/100ppm | |
| CH3Br | 0~20ppm/100ppm/200ppm | |
| CH4 | 0~10%vol/50%vol/100%vol | Laser sensor |
Henan Oceanus Import & Export Co., Ltd.
Henan Oceanus Import & Export Co., Ltd. has been engaged in the marketing of the Gas detection system since the establishment. Our company own the R&D force and an excellent marketing team, also the strict quality testing standards. Gas detection system is our main products, including of the Portable gas detector, Fixed gas detector, Gas detection controller, we can provide the good quality and after-sell for agents in different countries, for the end users we can provide the whole solutions for different applications. With the development of our company, our engineer research the new products, Air quality monitor system, particle counter, hardness tester and other instruments. All of the products are widely applied to different industrial fields. With the advantage of technology, products, price, pre-sale and after-sale service, we believe we can successful set up favorable and close relationships with the partners in various fields, including petroleum, chemical, gas industry, electric power, environmental protection and energy saving, steel industry, metallurgy, water treatment, pharmaceuticals industry medical industry and food service industry. LCD display portable Oxygen gas leak detector analyzer. portable O2 gas detection for industrial scene, portable O2 gas detector for industrial scene.
