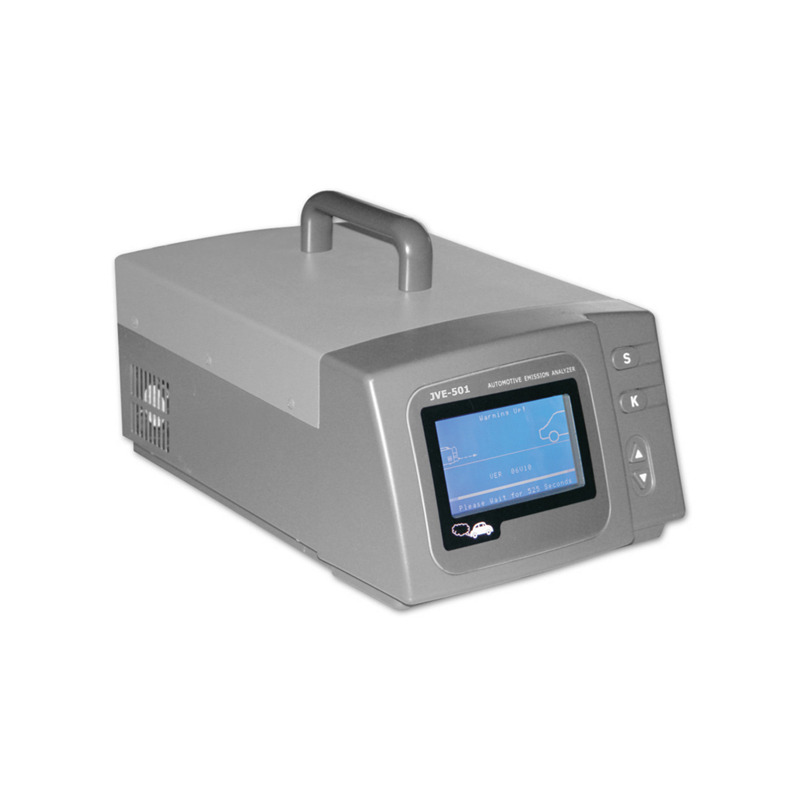

Measurement Items
HC, CO, CO2, O2, NO, λ
1/ Advanced NDIR (Non-Dispersive Infrared) analysis technology to measure HC, CO, CO2, newest electrochemical technology to measure O2 and NO
2/ Automatic calculation and display of A/F (air-fuel-ratio) and Lambda air ratio λ
3/ High-brightness big LCD screen
4/ CNG, LPG, ethanol vehicles can be tested
5/ Standard inductive RPM measurement adaptor
6/ 10-minutes standard warm-up and 5-minutes for fast measurement
7/ 200 groups measurement data storage and review
8/ Comply with ISO3930 and OIML 99 class I accuracy
Item | Parameters |
Measuring Rage | HC: 0 ~ 9,999 ppm (n-hexane) CO: 0 ~ 10 x 10-2 (%) CO2: 0 ~ 20 x 10-2(%) O2: 0 ~ 25 x 10-2(%) NO: 0 ~ 5,000 x 10-6 |
Measurement Accuracy | HC: ± 12 x 10-6 ( absolute error) or ±5% (relative error) CO: ± 0.06 x 10 -2 (%)(absolute error) or ±5% (relative error) CO2: ± 0.50 x 10 -2 (%)( absolute error) or ±5% (relative error) O2: ± 0.10 x 10 -2 (%)( absolute error) or ±5% (relative error) NO: ± 25 x 10 -6 ( absolute error) or ±5% (relative error) |
Warm-up Time | 10 min ( 5 min warm-up for fast measurement) |
Response Time | Less than 10s; NO testing less than 15s |
Power Supply | AC 220V ± 10% 50Hz ±1Hz |
