1. Functional feature
1). Used to measure the concentration of HC, CO, CO2, O2, NO in the Automobile Exhaust Gas.
2). Two kinds of test function: General and Two-speed idle
3). Full English Menu Operation
4). LCD (liquid crystal) screen displays
5). Auto-zeroing
6). Automatic calculation and show the air-fuel ratio λ
7). Equipped with RS232 digital serial communication interface to facilitate networking
8). Optional function: rotate speed and oil temperature measurement
9). Equipped with functions of Plate number and time display
10). Can store and search 500 groups of data, built-in printer
11). Measurable with liquefied gas (LG), liquefied natural gas (LNG) and gasoline and other alternative fuel vehicles.
2. The main technical parameters
| Instrument Precision | |||
| Measurement Range | Indicated Error | ||
| Absolute Error | Relative error | ||
| CO | 0~10×10-2 (%)vol | ±0.06×10-2(%)vol | ±5% |
| CO2 | 0~20×10-2 (%)vol | ±0.5×10-2(%)vol | ±5% |
| HC | 0~10000×10-6 (ppm)vol | ±12×10-6 vol | ±5% |
| O2 | 0~25×10-2 (%)vol | ±0.1×10-2(%)vol | ±5% |
| NO | 0~40000×10-6 (ppm)vol | ±25×10-6 vol | ±4% |
| Other Sepcifications | |
| Response Times: | CO, HC, CO2≤ 10S |
| NO, O2≤ 15S | |
| Power: | 220V / 50Hz (can be customized) |
| Preheating Time: | 10min (3 min. warm-up for fast measurement) |
| Display Method: | LCD large screen display |
| Gross Weight: | 15Kg |
| Packing Size: | 610*500*330mm |
| Temperature | -5~40 centigrade |
| Humidity | no more than 85% |
| Atmospheric Pressure | 86~106kPa |
| Packing List | ||
| Item | Description | Qty |

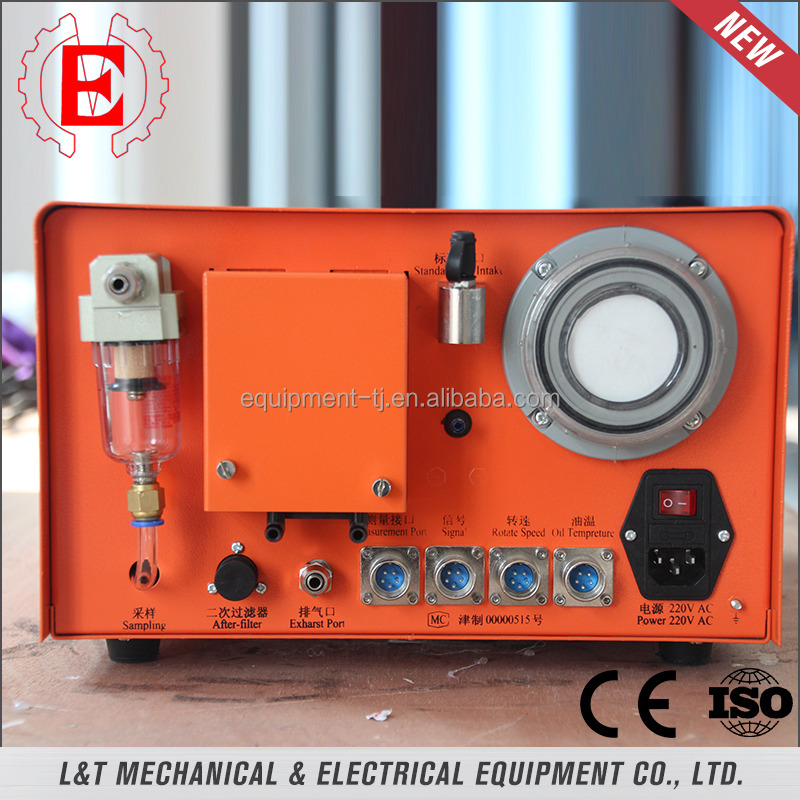

| 1 | SV-5Q Automobile Exhaust Gas Analyzer | 1 |
| 2 | Standard Gas(if ship by air, will not be included) | 2 |
| 3 | Protective Tube | 2 |
| 4 | Sampling Handle | 1 |
| 5 | Probe Tube | 1 |
| 6 | Operation Instruction | 1 |
| 7 | Calibration Certificate | 1 |
| 8 | Filter Paper | 1 |
| 9 | 220V power line | 1 |
| 10 | Front Filter | 8 |
| 11 | After-filter Tip | 10 |
| 12 | Tail Pipe (1m) | 1 |
| 13 | Print Paper | 1 |
| 14 | Specialized Spanner | 1 |
| 15 | Network Tie-in | 1 |
| 16 | Pump Cover | 2 |
| 17 | Filter Element For Oil-water Separator | 2 |
| 18 | PC Software and Operation video | 1 |
| 19 | Oil temperature Tester ( Free) | 1 |
| 20 | RPM Tester (Free) | 1 |
